UHMWPE Split Film Series


Availability:

Inquire

Features

• High strength – Excellent tensile strength, similar to regular UHMWPE yarn, but produced by splitting a thin film instead of direct spinning.
• Lightweight – Low density (approx. 0.97 g/cm³), floats on water.
• Excellent abrasion resistance – Outperforms polyester and nylon in high-friction environments.
• UV & chemical resistance – Stable under sunlight (with UV stabilizers); resists most acids, alkalis, and solvents.
• Low moisture absorption – Does not rot or mildew.
• Flat, tape-like cross-section – Gives good cover and binding properties in ropes and nets.
• Cost-effective – Generally less expensive than spun or filament UHMWPE yarns.

Product Description

Winding Type

Application

Ropes & Twines – Agricultural Ropes, Mooring Lines, Fishing Ropes, and General-Purpose Cords

Nets – Fishing Nets, Aquaculture Nets, Sports Nets, Cargo Nets, and Anti-Hail Nets

Industrial Fabrics – Geotextiles, Tarpaulins, and Protective Covers

Weaving & Braiding – Used As Warp or Weft in Heavy-Duty Industrial Textiles

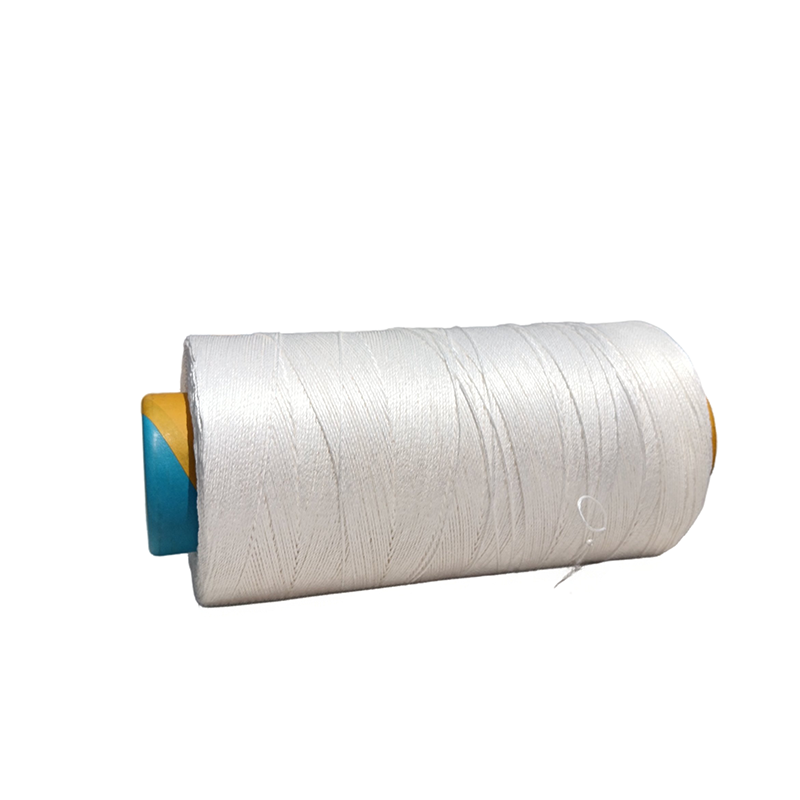

UHMWPE Split Film Strand

Specification	Tenacity (cN/dtex)	Breaking Elongation	Bobbin Weight	Max Strength (N)
1600D 3ply	≥27	≤6.5%	Max 9kg	5755
2400D 3ply	≥26	≤6.5%	Max 9kg	8310
4800D 3ply	≥26	≤7.0%	Max 8kg	11080
9600D 3ply	≥25	≤7.0%	Max 8kg	13320
