Aramid Series


Availability:

Inquire

Features

• High tensile strength – Five times stronger than steel by weight.
• Low elongation – Minimal stretch under load.
• Heat resistant – Withstands up to 400 °C (752 °F) without melting.
• Flame retardant – Inherently non-flammable, self-extinguishing, no dripping.
• Cut & abrasion resistant – Excellent protection against sharp edges.
• Chemical resistant – Resists most organic solvents, fuels, and alkalis.
• Lightweight – High strength-to-weight ratio.
• Low creep – Maintains tension over long periods.

Product Description

Winding Type

Application

Ballistic Protection – Bulletproof Vests, Helmets, Armor Panels, and Stab-Resistant Gear

Ropes & Cables – Mooring Lines, Tow Ropes, Offshore Cables, and Climbing Ropes

Nets – Anti-Shark Nets, Cargo Nets, and Protective Nets with Cut-Resistant Properties

Sewing Threads – Stitching Ballistic Fabrics, Firefighter Suits, Protective Gloves, and Heavy-Duty Industrial Textiles

Industrial Fabrics – Conveyor Belts, Friction Materials (Brake Pads, Clutch Facings), Heat Shields, and Gaskets

Aerospace & Automotive – Reinforcement for Composite Structures, Tire Cord, and Hoses

Protective Clothing – Firefighter Turnout Gear, Welding Aprons, Cut-Resistant Sleeves, and Heat-Resistant Gloves

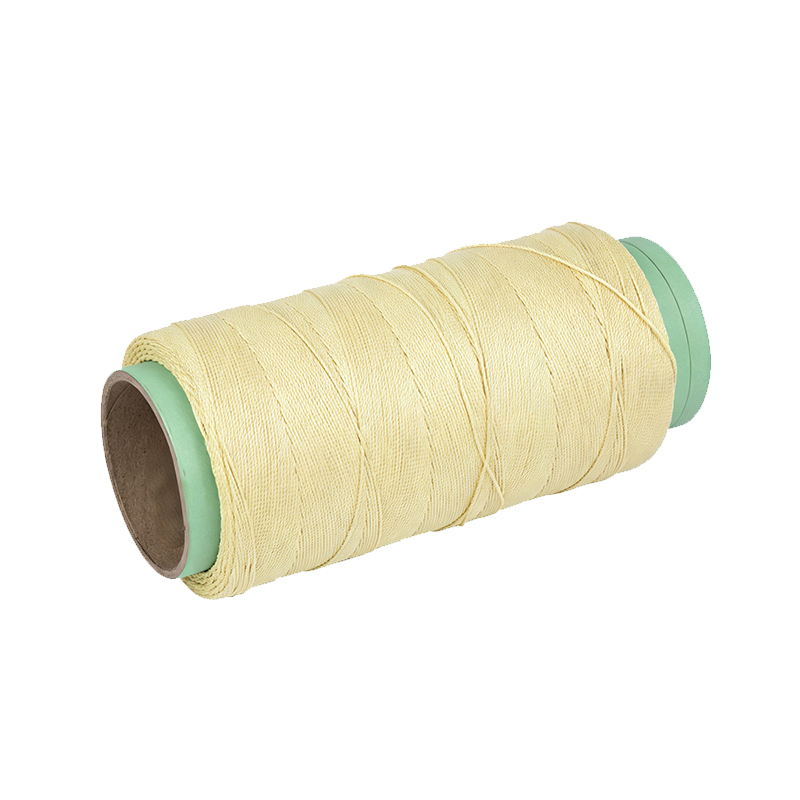

Aramid Sewing Thread

Specification	Multiple-ply	Tenacity (cN/dtex)	Breaking Elongation	Breaking Strength (N)
200D	2-3	≥21	4.5%±1%	290±5
400D	2-3	≥21	4.5%±1%	440±5
840D	2-6	≥21	4.5%±1%	620±5
1000D	2-6	≥21	4.5%±1%	720±5
1500D	2-6	≥21	4.5%±1%	1100±5
3000D	2-6	≥21	4.5%±1%	2130±5

Aramid Yarn

Specification	Tenacity (cN/dtex)	Bobbin Weight	Breaking Strength (N)	Max Meters
6000D 3ply	≥27	Max 18kg	4170	9000m
9000D 3ply	≥26	Max 18kg	6000	6000m
12000D 3ply	≥26	Max 15kg	7550	3750m
15000D 3ply	≥25	Max 15kg	9460	3000m
