Aramid Spun Yarn + Steel Wire/Aramid Filament Yarn+ Steel Wire

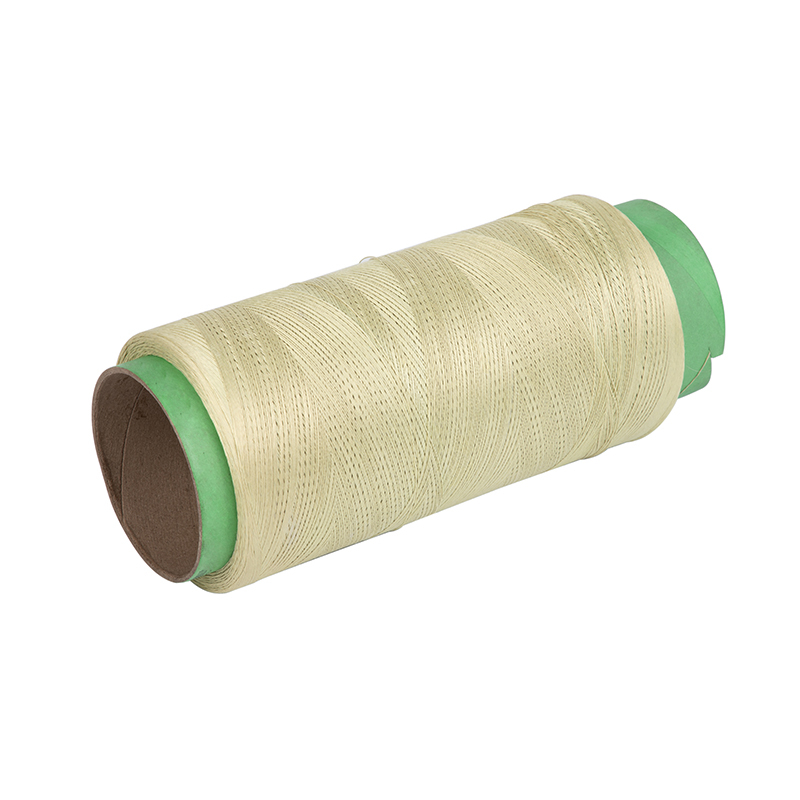

Aramid Covered Steel Wire Threads


Availability:

Inquire

Features

• Extreme cut resistance – Steel core provides unmatched protection against sharp objects; aramid sheath adds additional cut and heat resistance.
• High tensile strength – Combines the strength of steel wire with the toughness of aramid fibers.
• Flexibility & bendability – Aramid wrapping maintains yarn flexibility, allowing weaving, braiding, or knitting.
• Heat & flame resistance – Aramid outer layer withstands high temperatures and is inherently flame-retardant.
• Abrasion resistance – Durable construction resists wear and friction.
• Anti-static property – Steel core can dissipate static charge (depending on exposure).
• Customizable construction – Available in different steel wire diameters, aramid wrap density, and twist levels.

Product Description

Winding Type

Application

Cut-Resistant Gloves & Sleeves – High-Level Cut Protection for Glass Handling, Metal Stamping, and Food Processing Industries

Protective Clothing – Stab-Resistant Vests, Anti-Slash Jackets, and Safety Aprons

Ropes & Cords – Security Ropes, Anti-Theft Cables, and Lock-Down Cords Requiring Cut Resistance

Industrial Fabrics – Conveyor Belts, Anti-Cut Mesh, and Protective Screens

Automotive & Aerospace – Flexible Shafts, Seat Belt Reinforcement, and Firewall Barriers

Sporting Goods – Cut-Resistant Fencing Clothing, Protective Sleeves for Archery, and Safety Tethers

Aramid Filament Covered Steel Wire Thread

Specification	Steel 316L 50μm	Tensile Strength (MPa)	Broken Elongation
210D	3 ply	600-650	20-25%
420D	3 ply	600-650	20-25%
840D	6 ply	600-650	20-25%
1000D	6 ply	600-650	20-25%
1500D	9 ply	600-650	20-25%

Aramid Spun Covered Steel Wire Thread

Specification	Steel 316L 50μm	Tensile Strength (MPa)	Broken Elongation
6Ne/1/2/3	2 ply	600-650	20-25%
8Ne/1/2/3	3 ply	600-650	20-25%
10Ne/1/2/3	3 ply	600-650	20-25%
12Ne/1/2/3	6 ply	600-650	20-25%
16Ne/1/2/3	9 ply	600-650	20-25%
